Ducted System

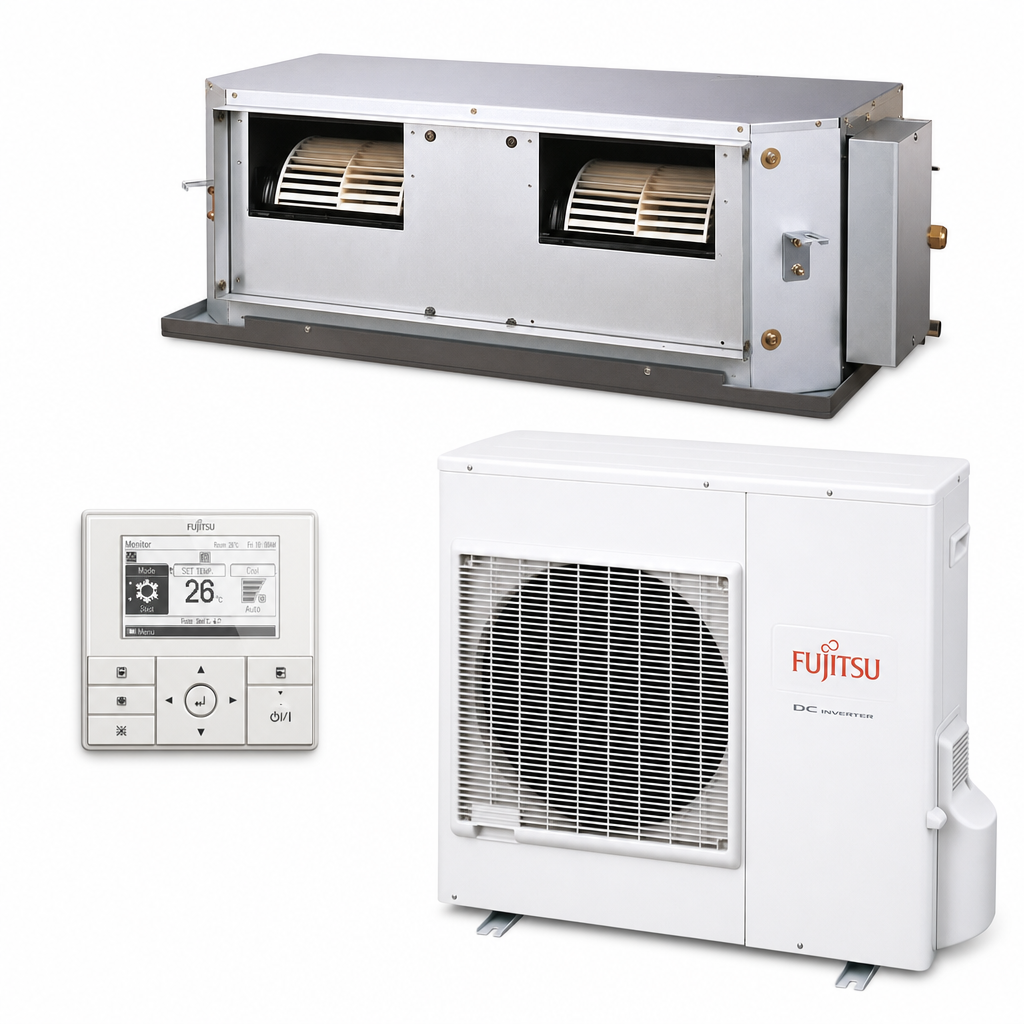

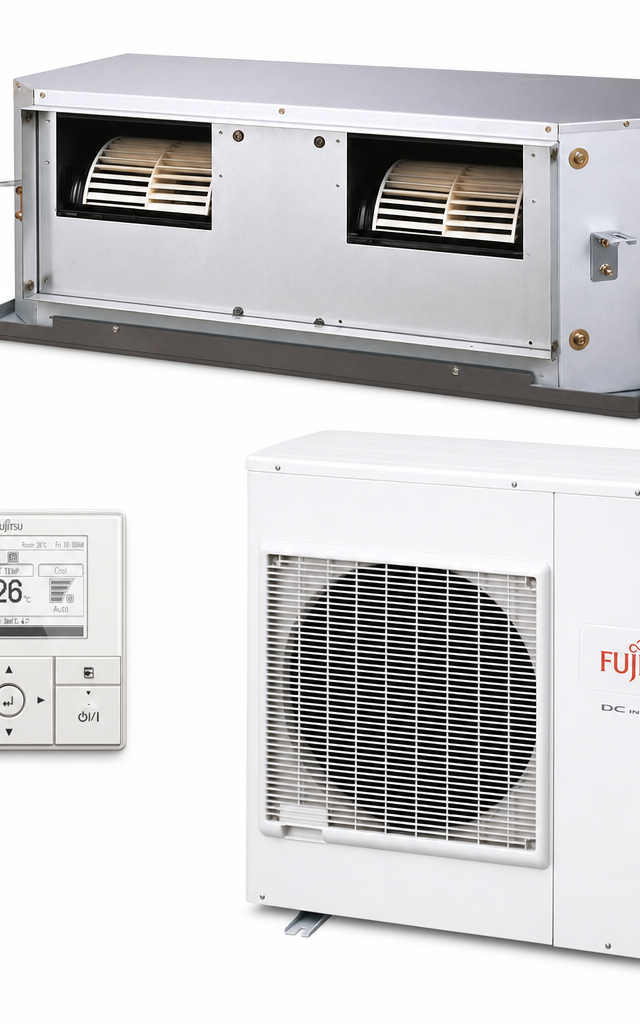

Fujitsu 10kW Inverter Ducted Air Conditioner System ARTH36KHTA

Model No. ARTH36KHTA / AOTH36KBTA

Fujitsu 10kW Inverter Ducted Air Conditioner System ARTH36KHTA

This discreet whole-home system delivers powerful high-static airflow and superior efficiency, providing whisper-quiet comfort through concealed ceiling vents for a seamless interior finish.

★★★★★ 4.8 (0 reviews) ✓ Fujitsu Authorised Partner
Fujitsu 10kW Inverter Ducted Air Conditioner System ARTH36KHTA
Fujitsu logo
Authorised Partner
5 Star Rated ServiceRated 4.8/5 from 70+ customers
Accredited InstallersLicensed and fully insured
Premium BrandsFujitsu specialist
Australia Wide SupportLocal team, nationwide
1
Supply Only

$3,871

For trade or DIY installation.

  • Indoor & outdoor unit
  • Remote controller
  • Installation manual
  • Standard manufacturer warranty
Enquire Now →
3
What's Included

Everything you need.

Clear inclusion list before you enquire.

  • Fujitsu 10kW Inverter Ducted Air Conditioner System ARTH36KHTA
  • Standard installation materials
  • System commissioning & testing
  • 5-year manufacturer warranty
  • 2-year installation warranty
View Full Inclusions →

Why choose this system

Even, Whole-Home Comfort

Conditioned air delivered to every room through discreet ceiling outlets.

Zoned Efficiency

Only condition the rooms in use — zoning keeps running costs down.

Hidden & Quiet

The unit is concealed in the roof space, leaving clean ceilings and quiet rooms.

Reliable All Year Round

Powerful reverse-cycle performance built for Australian conditions.

Technical specifications

Model NumberARTH36KHTA / AOTH36KBTA
Cooling Capacity10 kW
Heating Capacity11.2 kW
Room SuitabilityUp to 100 m²
Power SupplySingle / Three Phase, 240V / 50Hz
Indoor Sound Level36 – 41 dB(A)
Controller / Wi-FiWireless / Wired Remote
RefrigerantR32
AirflowUp to 2200 L/s
Indoor Unit Dimensions400H × 1050W × 500D mm
Outdoor Unit Dimensions788H × 940W × 320D mm
Unit Weights39 kg indoor · 52 kg outdoor

Installation options

Supply Only

We supply the unit to your door. Perfect for licensed trades or DIY planning.

Enquire Now →

Important Information

Final pricing is confirmed after a site assessment. Factors like pipe runs, wall type and access may affect installation requirements.

Common questions about the Fujitsu 10kW Inverter Ducted Air Conditioner System ARTH36KHTA

How much does the Fujitsu 10kW Inverter Ducted Air Conditioner System ARTH36KHTA cost installed?

Quoted per home fully installed by our ARCtick licensed team, including standard installation materials, electrical connection and commissioning, backed by the Fujitsu 5-year manufacturer warranty and our 2-year installation warranty. Supply-only is $3,871. Our instant quote calculator confirms the installed price for your home from your address.

What room size does the Fujitsu 10kW Inverter Ducted Air Conditioner System ARTH36KHTA suit?

It is rated for rooms up to 100 m², making it a strong fit for whole home comfort. We confirm sizing against the room, insulation and sun exposure before installing, because right-sizing is what keeps running costs down.

How quiet is the Fujitsu 10kW Inverter Ducted Air Conditioner System ARTH36KHTA?

The indoor unit runs at 36 – 41 dB(A). At the bottom of that range it is quieter than a whispered conversation, which is why we size systems to spend most of their time on low fan.

How much does the Fujitsu 10kW Inverter Ducted Air Conditioner System ARTH36KHTA cost to run?

At a typical Sydney electricity rate, running at its full rated capacity costs approximately 92 cents to $1.05 per hour. Real-world costs are usually lower once the home reaches temperature, and lower again when only the day or night zones are running, because an inverter throttles right back. Peak tariffs, extreme weather, insulation, thermostat settings and system sizing can all move the number.

What warranty does the Fujitsu 10kW Inverter Ducted Air Conditioner System ARTH36KHTA come with?

A 5-year Fujitsu manufacturer warranty on the unit, plus a minimum 2-year warranty on our installation workmanship. We register the manufacturer warranty at commissioning, and ARCtick licensed installation is what keeps it valid.

Ready to get started?

Get this system priced and installed for your home.

Speak with a Luxe specialist for tailored advice on sizing, installation and pricing.
