Ducted System

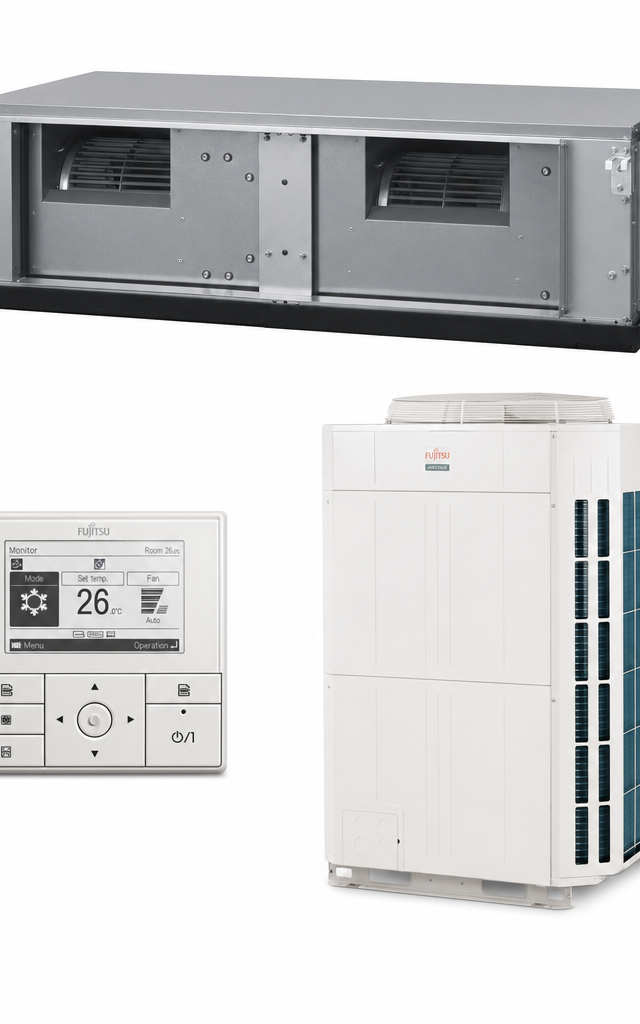

Fujitsu 25kW Inverter Ducted System 3 Phase SET-ARTC90LATU

Model No. ARTC90LATU / AOTA90LALT

Fujitsu 25kW Inverter Ducted System 3 Phase SET-ARTC90LATU

This high-capacity ducted system provides powerful, centralized climate control with exceptional static pressure, making it the premier choice for large residential or commercial environments.

★★★★★ 4.8 (0 reviews) ✓ Fujitsu Authorised Partner
Fujitsu 25kW Inverter Ducted System 3 Phase SET-ARTC90LATU
Fujitsu logo
Authorised Partner
5 Star Rated ServiceRated 4.8/5 from 70+ customers
Accredited InstallersLicensed and fully insured
Premium BrandsFujitsu specialist
Australia Wide SupportLocal team, nationwide
1
Supply Only

$7,578

For trade or DIY installation.

  • Indoor & outdoor unit
  • Remote controller
  • Installation manual
  • Standard manufacturer warranty
Enquire Now →
3
What's Included

Everything you need.

Clear inclusion list before you enquire.

  • Fujitsu 25kW Inverter Ducted System 3 Phase SET-ARTC90LATU
  • Standard installation materials
  • System commissioning & testing
  • 5-year manufacturer warranty
  • 2-year installation warranty
View Full Inclusions →

Why choose this system

Even, Whole-Home Comfort

Conditioned air delivered to every room through discreet ceiling outlets.

Zoned Efficiency

Only condition the rooms in use — zoning keeps running costs down.

Hidden & Quiet

The unit is concealed in the roof space, leaving clean ceilings and quiet rooms.

Reliable All Year Round

Powerful reverse-cycle performance built for Australian conditions.

Technical specifications

Model NumberARTC90LATU / AOTA90LALT
Cooling Capacity25 kW
Heating Capacity28.0 kW
Room SuitabilityUp to 250 m²
Power SupplySingle / Three Phase, 240V / 50Hz
Indoor Sound Level49 dB(A)
Controller / Wi-FiWireless / Wired Remote
RefrigerantR32
AirflowUp to 2200 L/s
Indoor Unit Dimensions550H × 1587W × 700D mm
Outdoor Unit Dimensions1690H × 930W × 765D mm
Unit Weights110 kg indoor · 215 kg outdoor

Installation options

Supply Only

We supply the unit to your door. Perfect for licensed trades or DIY planning.

Enquire Now →

Important Information

Final pricing is confirmed after a site assessment. Factors like pipe runs, wall type and access may affect installation requirements.

Common questions about the Fujitsu 25kW Inverter Ducted System 3 Phase SET-ARTC90LATU

How much does the Fujitsu 25kW Inverter Ducted System 3 Phase SET-ARTC90LATU cost installed?

Quoted per home fully installed by our ARCtick licensed team, including standard installation materials, electrical connection and commissioning, backed by the Fujitsu 5-year manufacturer warranty and our 2-year installation warranty. Supply-only is $7,578. Our instant quote calculator confirms the installed price for your home from your address.

What room size does the Fujitsu 25kW Inverter Ducted System 3 Phase SET-ARTC90LATU suit?

It is rated for rooms up to 250 m², making it a strong fit for large open-plan spaces. We confirm sizing against the room, insulation and sun exposure before installing, because right-sizing is what keeps running costs down.

How quiet is the Fujitsu 25kW Inverter Ducted System 3 Phase SET-ARTC90LATU?

The indoor unit runs at 49 dB(A). At the bottom of that range it is quieter than a whispered conversation, which is why we size systems to spend most of their time on low fan.

How much does the Fujitsu 25kW Inverter Ducted System 3 Phase SET-ARTC90LATU cost to run?

At a typical Sydney electricity rate, running at its full rated capacity costs approximately $2.30 to $2.55 per hour. Real-world costs are usually lower once the home reaches temperature, and lower again when only the day or night zones are running, because an inverter throttles right back. Peak tariffs, extreme weather, insulation, thermostat settings and system sizing can all move the number.

What warranty does the Fujitsu 25kW Inverter Ducted System 3 Phase SET-ARTC90LATU come with?

A 5-year Fujitsu manufacturer warranty on the unit, plus a minimum 2-year warranty on our installation workmanship. We register the manufacturer warranty at commissioning, and ARCtick licensed installation is what keeps it valid.
