Ducted System

Samsung 5.2kW Duct S2 Inverter Ducted Air Conditioner AC052TNHDKG/SA

Model No. AC052TNHDKG/SA / AC052TXAPKG/SA

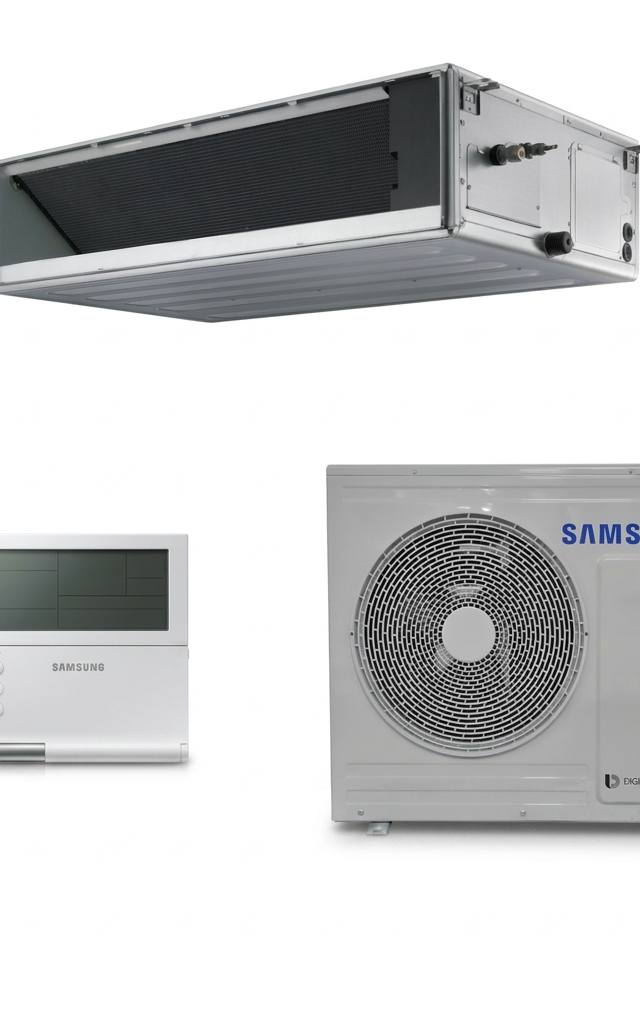

Samsung 5.2 kW ducted air conditioner indoor and outdoor units

This slim ducted system delivers powerful, energy-efficient climate control with a compact design, making it the perfect discreet heating and cooling solution for any room.

✓ Samsung Authorised Partner

Instant online quote — your home priced in 60 seconds from your address. No site visit.

Samsung 5.2 kW ducted air conditioner indoor and outdoor units
Samsung
Authorised Partner
ARCtick LicensedInstalled by our licensed team (AU42906)
Accredited InstallersLicensed and fully insured
Premium BrandsSamsung specialist
Sydney-Wide SupportOne local install & service team
1
Supply Only

$2,074

Supply only, for appropriately licensed contractors.

  • Indoor & outdoor unit
  • Remote controller
  • Installation manual
  • Standard manufacturer warranty
Enquire Now →
3
What's Included

Everything you need.

Clear inclusion list before you enquire.

  • Samsung 5.2kW Duct S2 Inverter Ducted Air Conditioner AC052TNHDKG/SA
  • Standard installation materials
  • System commissioning & testing
  • 5-year manufacturer warranty
  • 2-year installation warranty
View Full Inclusions →

Why choose this system

Even, Whole-Home Comfort

Conditioned air delivered to every room through discreet ceiling outlets.

Zoned Efficiency

Only condition the rooms in use — zoning keeps running costs down.

Hidden & Quiet

The unit is concealed in the roof space, leaving clean ceilings and quiet rooms.

Reliable All Year Round

Powerful reverse-cycle performance built for Australian conditions.

Technical specifications

Model NumberAC052TNHDKG/SA / AC052TXAPKG/SA
Cooling Capacity5.2 kW
Heating Capacity6.0 kW
Room SuitabilityUp to 45 m²
Power SupplySingle / Three Phase, 240V / 50Hz
Indoor Sound Level27 – 35 dB(A)
Controller / Wi-FiWireless / Wired Remote
RefrigerantR32
AirflowUp to 2200 L/s
Indoor Unit Dimensions250H × 850W × 700D mm
Outdoor Unit Dimensions798H × 880W × 310D mm
Unit Weights26.5 kg indoor · 51 kg outdoor

Installation options

Supply Only

We supply the unit to your door, for installation by appropriately licensed contractors.

Enquire Now →

Important Information

Final pricing is confirmed after a site assessment. Factors like pipe runs, wall type and access may affect installation requirements.

Common questions about the Samsung 5.2kW Duct S2 Inverter Ducted Air Conditioner AC052TNHDKG/SA

How much does the Samsung 5.2kW Duct S2 Inverter Ducted Air Conditioner AC052TNHDKG/SA cost installed?

Quoted per home fully installed by our ARCtick licensed team, including standard installation materials, electrical connection and commissioning, backed by the Samsung 5-year manufacturer warranty and our 2-year installation warranty. Supply-only is $2,074. Our instant quote calculator confirms the installed price for your home from your address.

What room size does the Samsung 5.2kW Duct S2 Inverter Ducted Air Conditioner AC052TNHDKG/SA suit?

It is rated for rooms up to 45 m², making it a strong fit for living areas. We confirm sizing against the room, insulation and sun exposure before installing, because right-sizing is what keeps running costs down.

How quiet is the Samsung 5.2kW Duct S2 Inverter Ducted Air Conditioner AC052TNHDKG/SA?

The indoor unit runs at 27 – 35 dB(A). At the bottom of that range it is quieter than a whispered conversation, which is why we size systems to spend most of their time on low fan.

How much does the Samsung 5.2kW Duct S2 Inverter Ducted Air Conditioner AC052TNHDKG/SA cost to run?

Assuming a typical Sydney tariff of 33–35c/kWh: at full output this unit draws roughly 1.4–1.5 kW of electrical input (typical efficiency for a modern inverter of this capacity), which works out to approximately 48 cents to 54 cents per hour. Real-world costs are usually lower once the home reaches temperature, and lower again when only the day or night zones are running, because an inverter throttles right back. Your exact tariff, the model's rated input power, insulation, thermostat settings and system sizing all move the number.

What warranty does the Samsung 5.2kW Duct S2 Inverter Ducted Air Conditioner AC052TNHDKG/SA come with?

A 5-year Samsung manufacturer warranty on the unit, plus a minimum 2-year warranty on our installation workmanship. We register the manufacturer warranty at commissioning, and ARCtick licensed installation is what keeps it valid.
